esp-box/examples/usb_camera_lcd_display

USB Camera LCD Display Example

Board	Support Status
ESP32-S3-BOX	NO
ESP32-S3-BOX-Lite	NO
ESP32-S3-BOX-3	YES

This example demonstrates how to use the usb_stream component to acquire a USB camera image and display it adaptively on the LCD screen.

• Pressing the boot button can switch the display resolution.
• For better performance, please use ESP-IDF release/v5.0 or above versions.
• When the image width is equal to the screen width, the refresh rate is at its highest.

Hardware

• An ESP32-S3-BOX-3 development board with 320*240 LCD.
• A USB Type-C cable for power supply and programming.
• A USB camera (Can be connected to USB-A port or expansion connector).

Note:

• The USB camera used in this demo has some limitations. The USB camera must be compatible with USB1.1 full-speed mode and support MJPEG output, for more details, please see the USB Stream User Guide.
• For access to the USB camera sample, you can visit TaoBao or Aliexpress.

Known Issues

• Error message with A fatal error occurred: Could not open /dev/ttyACM0, the port doesn't exist. Please first make sure development board connection, then make board into "Download Boot" mode to upload by following steps:

  1. Keep pressing "BOOT" button.
  2. Short press "RST" button.
  3. Release "BOOT".
  4. Upload program and reset.

• Please use the USB-C port on the main unit to flash firmware. Once flashing is complete, connect the USB camera to the ESP32-S3-BOX-DOCK USB-A port, and switch your USB cable to the USB-C port of the ESP32-S3-BOX-DOCK. Please note don't connect the USB camera while flashing the MCU.

• The USB-C port on the ESP32-S3-BOX-DOCKonly support 5 V power input, which ensures proper power supply to the USB camera. Please do not use it to flashing firmware.

• For log debugging, please access the serial connection by a standard USB-To-TTL device through the 12-pin female header of the ESP32-S3-BOX-DOCK with U0TXD and U0RXD.

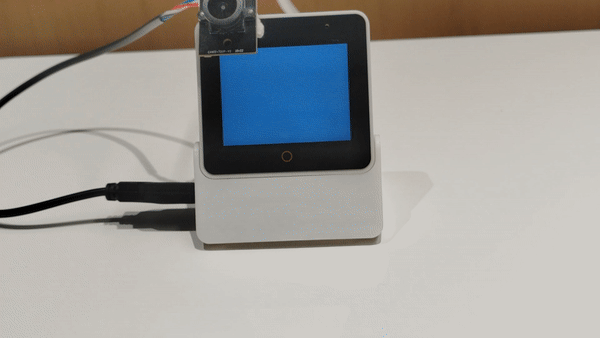

The result after the demo is correctly programmed and connected is as follows：

How To Use

1. First delete existing build, sdkconfig, sdkconfig.old.

idf.py set-target esp32s3

2. Compile and burn.

idf.py build flash monitor
